Overview
The Pre-Connectorized Fiber Optic Drop Cable SC-UPC G.657 A2 is designed to simplify fiber installations by providing a factory-terminated solution. With an SC-UPC connector already attached, the cable can be directly plugged into adapters without splicing or field connectorization.
Built with low-bend-sensitivity fiber and reinforced structure, this product ensures consistent optical performance, easy handling, and high practicality for residential and commercial FTTH deployments.
Key Advantages
- Pre-Connectorized Design
Factory-installed SC-UPC connector enables quick installation—simply plug into the adapter. - Low Bend Sensitivity Fiber (G.657 A2)
Supports high bandwidth and stable signal transmission even in tight routing conditions. - Enhanced Mechanical Protection
Two parallel FRP strength members improve crush resistance and protect the fiber core. - Safe & Flame-Retardant Jacket
LSZH sheath provides low smoke, zero halogen, and flame-retardant properties. - Lightweight & Practical Structure
Simple construction makes installation, routing, and maintenance more efficient.
Specifications
- Fiber Type: Single-mode G.657 A2

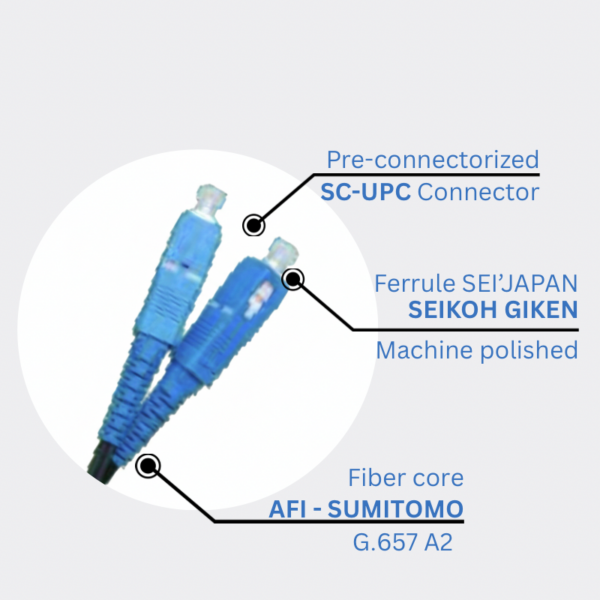

- Connector Type: SC-UPC (Blue)
- Connector Polish: Machine Polished
- Ferrule:
- SEI Japan
- Seikoh Giken
- Fiber Core Supplier: AFI – Sumitomo

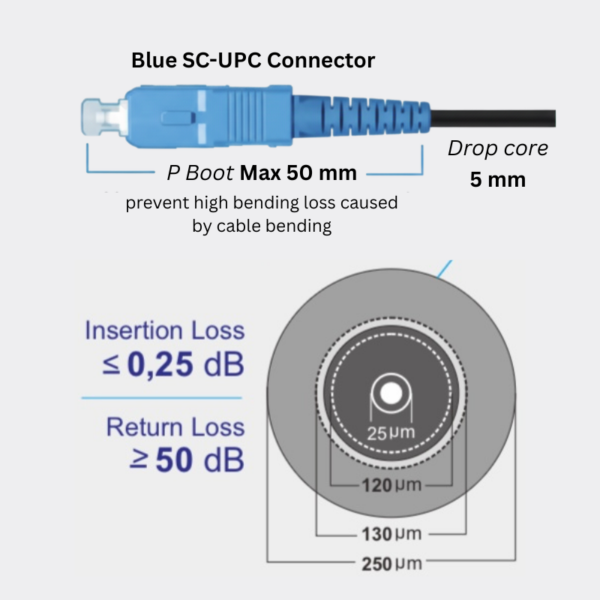

- Insertion Loss: ≤ 0.25 dB
- Return Loss: ≥ 50 dB
- Cable Diameter: 5 mm (Drop Core)
- Fiber Diameter: 250 µm
- Strength Member: Dual parallel FRP
- Jacket Material: LSZH (Low Smoke Zero Halogen)

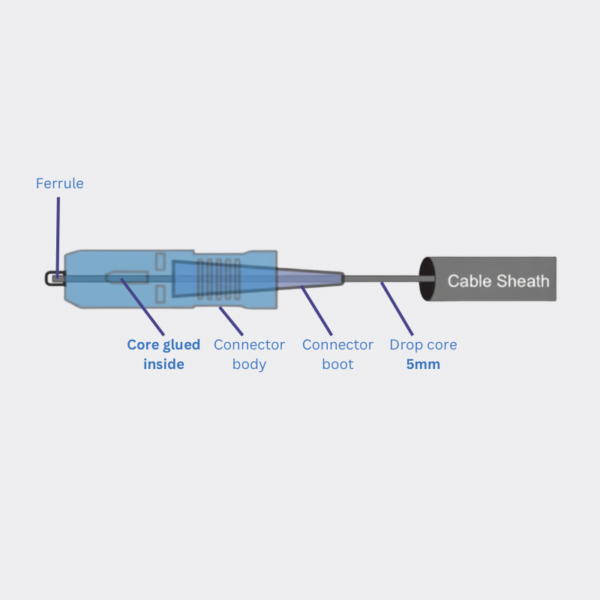

- Connector Boot Length: Max. 50 mm (reduces bending loss)

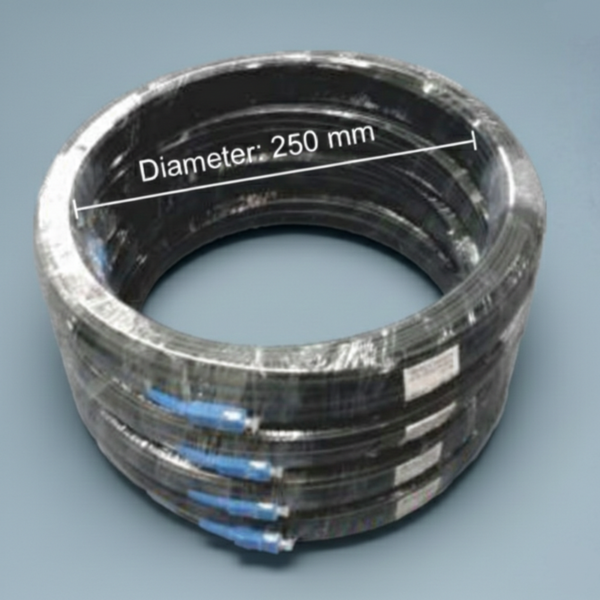

Available Cable Lengths
- 50 m
- 75 m
- 80 m
- 100 m
- Custom length available upon request
Applications
- FTTH (Fiber to the Home) installations
- Access network and subscriber connections
- Indoor and last-mile fiber deployment
- Residential and commercial telecom projects
